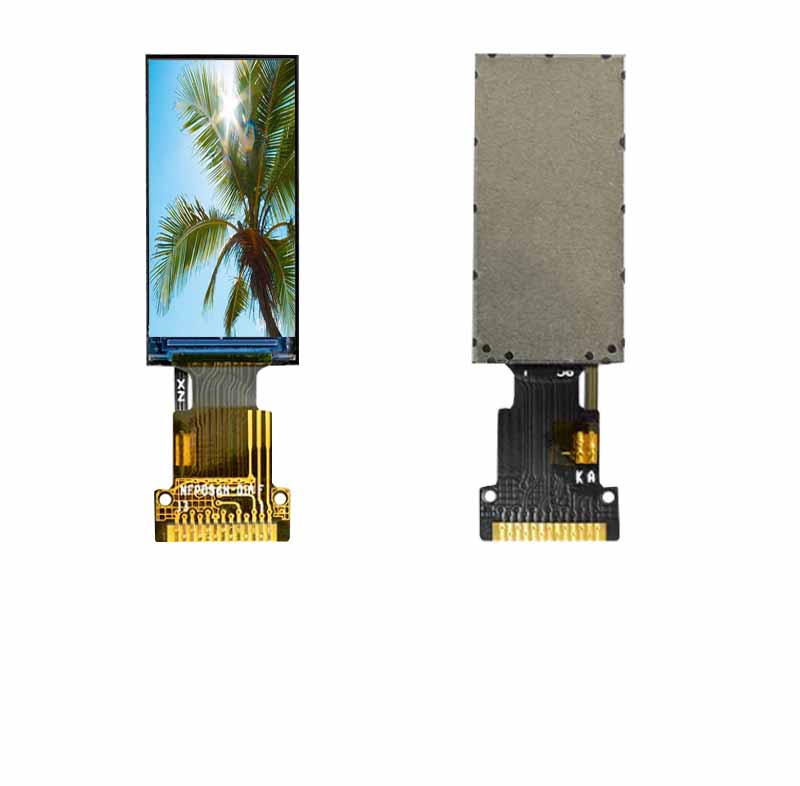

  • 0.96 mini lcd screen ips tft display spi 80x160 pixel MLT009G13-05
0.96 mini lcd screen ips tft display spi 80x160 pixel MLT009G13-05

0.96 mini lcd screen ips tft display spi 80x160 pixel MLT009G13-05

  • 0.9 inch mini lcd screen
  • 80x160 dots tft lcd
  • Mini tft display
  • IPS full viewing angle tft display
  • Product description: 0.96'' mini lcd screen, IPS tft lcd spi interface,it is mini lcd display with 80RGBx160 resolution,The tft lcd is 0.96 inch in diagonal. ST7735S controller ic, 4 wires spi interface.
  • INQUIRY

0.96 inch mini lcd screen spi interface:

0.96 inch mini tft display is mini lcd display with spi interface, it is a color IPS tft lcd display panel which is made with 80RGBx160 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This very very small tft display is only 0.96" in diagonal, packed with RGB pixels, for making very small high-density displays.

The mini lcd display MLT009G13-05 is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit.

This 0.96 mini lcd display is full viewing angel mini tft display, and built in with ST7735S controller IC, it support 4 wires SPI interface.

The 0.96’’ mini lcd screen MLT009G13-05 is often used for any embedded systems, industrial device, security and hand-held equipment which requires mini lcd display in high quality and colorful image. This tft 0.96 is ideal solution to replace traditional 0.96 inch monochrome oled, with higher resolution and similar thickness to OLED. Only one led chip, lower over consumption. small MOQ acceptable.

0.96 inch mini tft display key parameters (spi interface):

Display Size

0.96 inch tft (Diagonal)

Resolution

80(RGB)X 160

Module Dimension

3.5(W)x 27.95(H)x 1.5(T) mm

Active Display Area

10.8(W)×21.7 (H) mm

Viewing Direction

All

LED Backlight Color

White LEDx1

Driver IC

ST7735S

Interface

4 Wires tft lcd SPI interface

Luminance

200 nits

Touch screen

Optional pcap

If the brightness is not enough for your requirement, please feel free to contact us, we could custom make the backlight to upgrade the brightness up to 500+ nits mini lcd screen.

Datasheet download

What is tft lcd spi interface:

TFT LCD spi interface means the tft lcd with spi interface, the spi interface has less pin connection compare to the 8 bits MPU interface, or RGB interface, the spi interface have 3 wire SPI interface and 4 wire spi interface. tft lcd spi interface have SDA and SCL pins, SDA pin is used for the data/command input, and SCL pin is used for clock interface.

What is tft lcd spi interface used for?

TFT LCD spi interface can be used in the the MCU board, such as 8051 system, Ardunio, Stm32 board, and almost all the controller board, because SPI interface use only 3 wires or 4 wires interface, it could be saved the interface for many smart control system.

What mini lcd display screen available?

Maclight have mini lcd display in 0.96" minimum, it is the smallest tft lcd display sizes, Maclight also have the mini OLED display in 0.48", if you are searching the mini lcd display or mini oled, welcome to contact Maclight display.

Want to know more tft lcd spi products and mini lcd display and mini oled display,

Contact us now for more mini lcd screen !   Email: [email protected]

Find more mini lcd screen:

1.14" small tft lcd:
https://www.szmaclight.com/product/small-tft-lcd.html

1.33" small tft display module:
https://www.szmaclight.com/product/small-tft-display-module.html

Key words: tft 0.96" mini lcd screen, 0.9 tft lcd, 0.96 tft display, 0.96" mini lcd display, 0.96 inch tft lcd, tft lcd 0.96, 0.96" tft display, 0.96 inch tft display, tft display 0.96, tft display 0.96",  tft 0.96, 0.96 mini tft display,
