Position:Home >Products > TFT LCD display module

TFT LCD display module

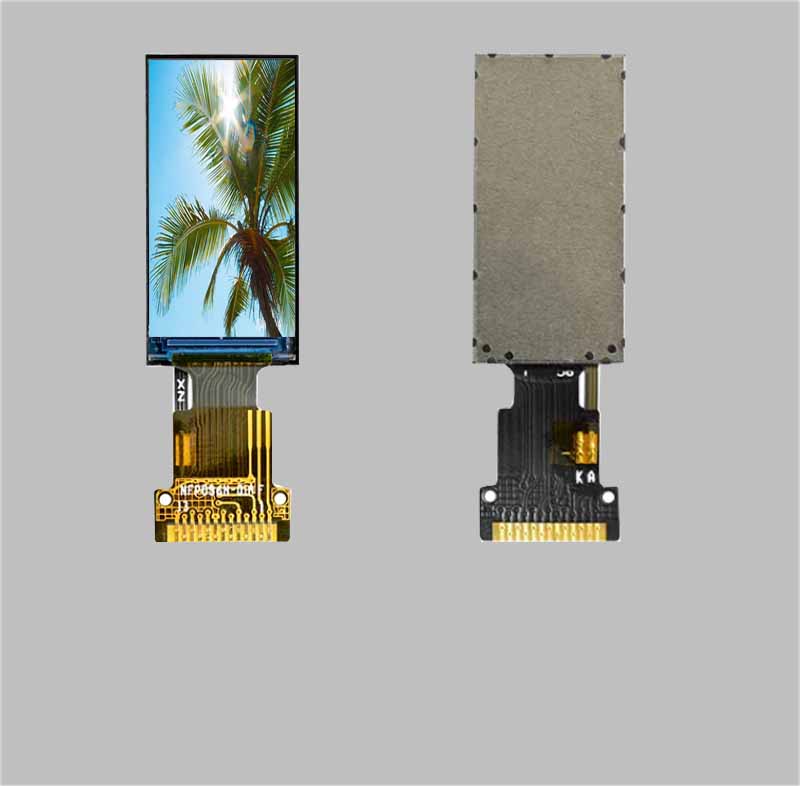

0.96 mini lcd screen ips tft spi MLT009G13-06

0.96 mini lcd screen ips tft spi MLT009G13-06

0.96'' mini lcd screen, IPS tft lcd spi interface,80RGBx160 display resolution,ST7735S

0.96 inch small lcd display tft SPI MLT009G8-01

0.96 inch small lcd display tft SPI MLT009G8-01

0.96'' small lcd screen, IPS tft lcd spi interface,it is tiny lcd display with 80RGBx1

Very Small Lcd Display 1.14 inch tft MLT011G13-1

Very Small Lcd Display 1.14 inch tft MLT011G13-1

1.14 inch small lcd display module, 135RGBx240 resolution, ST7789V2 controller ic, 4 w

1.33 inch small tft display module MLT013G12-1

1.33 inch small tft display module MLT013G12-1

1.33 inch small squre tft lcd display module,240RGBx240 resolution The ST7789V2 contro

1.3 inch ips tft lcd PCAP touch MLT013G45-CT5

1.3 inch ips tft lcd PCAP touch MLT013G45-CT5

1.3 inch small squre tft lcd display module,240RGBx240 resolution The ST7789V controll

1.41 inch wide temperature tft lcd MCU MLT014L20-1

1.41 inch wide temperature tft lcd MCU MLT014L20-1

1.41 inch tft lcd display module, it is with 128RGBx128 resolution square tft lcd. The

1.54 inch IPS square lcd display 240x240 MCU MLT015G24-1

1.54 inch IPS square lcd display 240x240 MCU MLT01

1.54'' square lcd display, IPS tft lcd display panel, 240RGBx240 resolution, It is ST7

1.54 inch IPS square lcd display 240x240 SPI interface MLT015G12-6

1.54 inch IPS square lcd display 240x240 SPI inter

1.54'' square lcd display, IPS tft lcd display panel, 240RGBx240 resolution, It is ST7

12345 ... 13 »
SizeMaclight P/NResolutionDisplay area(mm)Size(L*W*T/mm)Interface Brightness(cd/m2)Touch panelRemark
0.96''MLT009G13-06 80RGB*160 10.08*21.70 13.50*27.95*1.50 SPI 400 None No MOQ Required
1.3''MLT013G12-1 V2 240RGB*240 23.40 *23.40 26.16* 29.22*1.50 SPI 350 None No MOQ Required
1.3''(Round)MLT013G45-3 240RGB*240 32.40*32.40 35.90*39.70*1.29 MCU/RGB/SPI 500 Optional No MOQ Required
1.3''MLT013G45-CT5 240RGB*240 23.40 *23.40 37.50*41.10*3.14 MCU/RGB/SPI 450 With CTP No MOQ Required
1.14''MLT011G13-1 135RGB*240 14.864*24.912 17.60*31.00*1.60 SPI 400 None No MOQ Required
1.54''MLT015G12-6 240RGB*240 27.72*27.72 31.52*33.72*1.90 SPI 400 Optional No MOQ Required
1.54MLT015G45-CT7 240RGBx240 27.72*27.72 37.52*41.10*4.45 MCU/RGB/SPI 255 With CTP No MOQ Required
1.6MLT016R24-2 480RGB*480 39.84*39.84 42.94*45.89*1.60 MIPI 300 None
1.8MLT018A20-7 128RGB*160 28.03*35.04 34.70*46.70*2.60 MCU 180 Optional
1.8MLT018A24-10 128RGB*160 28.03*35.04 34.70*46.75*2.40 MCU 1000 Optional
2.0MLT020B45-3 176RGB*220 31.68*39.60 38.40*51.40*2.35 MCU/SPI/RGB 230 Optional
2.0MLT020B33-1 176RGB*220 31.68*39.60 38.03*51.65*2.50 MCU 250 Optional MOQ:3k
2.0”MLT020Q45-1 240RGB*320 30.60*40.80 36.10*51.20*2.35 MCU/RGB/SPI 250 Optional MOQ:3k
2.1''(Round)MLT021R40-3 480RGB*480 53.28x53.28 56.18* 59.71*2.30 RGB 250 None
2.1''(Round)MLT021R45-4 480RGB*480 53.28*53.28 56.18*59.71*2.24 RGB+SPI 500 None Support Small MOQ
2.2MLT022Q37-3 240RGB*320 33.84*45.12 38.5*56.1*2.40 MCU 330 Optional
2.3“MLT023R31-5 320RGB*240 46.75*35.06 50.60* 44.30*2.30 MCU 290 Optional
2.4MLT024Q40-2 240RGB*320 36.72*48.96 42.72*59.46*2.20 RGB/MCU 250 Optional
2.4MLT024Q40-15 240RGB*320 36.72*48.96 41.52*57.16*2.45 RGB/MCU/SPI 500 Optional
2.4MLT024Q45-CT2 240RGB*320 36.72*48.96 48.72*70.26*3.95 SPI/RGB/MCU 500 with CTP Support Small MOQ
2.4" TransflectiveMLT024Q45-R5 240RGB*320 36.72*48.96 42.92*60.26*2.45 SPI/RGB/MCU 360 Optional Support Small MOQ
2.4MLT033Q17-1 320RGB*320 60.00*60.00 66.20*69.30*3.84 MIPI 550 Optional
2.6MLT026Q50-1 240RGB*320 39.60*52.80 46.00*64.00*2.6 SPI/RGB/MCU 400 Optional Support Small MOQ
2.7MLT027Q39-1 320RGB*320 48.96*48.96 53.10*59.00*2.30 SPI/RGB 250 None
2.8 IPSMLT028Q50-8 240RGB*320 43.20*57.60 50.00*69.20*2.70 MCU/SPI/RGB 500 Optional
2.8MLT028Q50-16 240RGB*320 43.20*57.60 50.00*69.20*2.70 RGB/MCU/SPI 280 Optional
3.2''MLT032Q40-T6 240RGB*320 48.60*64.80 55.04*77.70*3.5 MCU 250 With RTP
3.4MLT034S39-CT1 800RGB*800 87.60*87.60 99.00*96.60*3.98 MIPI 350 with CTP
3.5MLT035Q45-CT7 320RGB*240 70.08*52.56 76.90*64.00*4.80 RGB 500 with CTP
3.5''MLT035Q50-3 320RGB*240 70.08*52.56 78.10*64.90*3.05 MCU 350 Optional Support Small MOQ
3.5MLT035Q54-5 320RGB*240 70.08*52.56 64.00*76.90*3.10 RGB 250 Optional
3.5''MLT035Q54-CT7 320RGB*240 70.08*52.56 76.90*63.90*4.80 SPI/RGB 300 with CTP
3.5''MLT035Q54-17 320RGB*240 70.08*52.56 76.90*64.0*3.05 RGB 900 Optional
3.5" IPSMLT035H50-20 320RGB*480 48.96*73.44 54.66*82.94*2.35 SPI/RGB/MCU 360 Optional
3.5" IPSMLT035H50-12 320RGB*480 48.96*73.44 54.58*83.57*2.18 SPI/MCU/RGB 600 Optional Support Small MOQ
4.0" IPSMLT040R45-CT1 480RGB*480 71.86*70.18 84.00*84.00*3.68 RGB 450 with CTP
4.3MLT043R40-26 480RGB*272 95.04*53.856 105.50*67.20*2.95 RGB 500 Optional Support Small MOQ
4.3MLT043R40-T26 480RGB*272 95.04*53.856 105.50*67.20*4.1 RGB 420 With RTP
4.3MLT043R40-CT30 480RGB*272 95.04*53.856 105.50*67.20*4.75 RGB / I2C 450 With CTP
4.3 IPSMLT043R40-21 480RGB*272 95.04*53.86 105.50*67.20*3.0 RGB 420 Optional
4.3MLT043W40-9 800RGB*480 95.04*53.86 105.50*67.20*3.00 RGB 500 Optional
5.0''MLT050R40-2 480RGB*272 110.88*62.83 120.7*75.8*3.1 RGB 400 Optional
5MLT050W40-28 800RGB*480 108.00*64.80 120.7*75.8*2.9 RGB 250 Optional
5.0''MLT050W40-CT31 800RGB*480 108.00*64.80 120.70*76.30*5.03 RGB / I2C 400 with CTP
5.0''MLT050V50-11 640RGB*480 101.57*76.18 117.65*88.43*5.70 RGB 250 Optional
5.0MLT050W20-1 800RGB*480 108.00*64.80 120.70* 76.30*4.85 LVDS 1100 Optional wide temp.,-30~+80°C
5.6MLT056V40-1 640RGB*480 113.8*84.70 126.50*100.00*5.70 RGB 350 Optional
5.7''MLT057V33-13 640RGB*480 115.2*86.40 144.00*104.60*12.80 TTL(RGB) 290 Optional
6.5MLT065W50-1 800RGB*480 143.4*76.7 155.2*89.4*5.5 RGB 500 Optional
7.0MLT070W50-22 800RGB*480 154.08*85.92 165.00*100.00*5.70 RGB 400 Optional
7.0MLT070W50-T22 800RGB*480 154.08*85.92 164.90*100.00*7.20 TTL(RGB) 400 With RTP
7.0MLT070W50-CT22 800RGB*480 154.08*85.92 165.00*100.00*7.43 RGB / I2C 420 With CTP
7.0''MLT070W50-26 800RGB*480 154.08*85.92 164.95*100.00*5.70 TTL(RGB) 450 Optional Wide Temp
7.0''MLT070W50-T21 800RGB*480 154.08*85.92 165.00*100.00*6.85 RGB 400 With RTP
7.0''MLT070W40-41 800RGB*480 152.40*91.44 165.00*104.60*5.30 RGB 450 Optional
7.0''MLT070W40-43 800RGB*480 152.40*91.44 165.00*104.60*5.3 RGB 460 Optional
7.0" IPSMLT070X40-18 1024RGB*600 154.21*85.92 164.90*100.00*5.7 LVDS 500 Optional
7.0" IPS MLT070X40-CT29 1024RGB*600 154.21*85.92 181.00*121.00*5.18 LVDS / USB 350 with CTP (USB)
7.0“ IPSMLT070X40-CT30 1024RGB*600 154.21*85.92 164.90*100.00*7.40 LVDS / I2C 420 with CTP
7.0'' IPSMLT070X50-1 1024RGB*600 154.21*85.92 164.90*100.00*2.92 RGB 250 Optional
8.0MLT080W50-1 800RGB*480 180.1*103.4 192.80*116.90*6.3 TTL(RGB) 320 Optional
8.0''MLT080S50-13 800RGB*600 162.00*121.50 183.00*141.00*6.20 RGB 500 Optional
8.0MLT080X40-10 1024RGB*768 162.05*121.54 174.00*136.00*2.50 LVDS 350 None
8.4MLT084S20-1 800RGB*600 173.20*130.60 203.00*142.50*5.70 LVDS 350 Optional
9.0MLT090W50-T2 800RGB*480 201.00*114.70 211.10*126.50*7.70 TTL(RGB) 350 with RTP
10.1MLT101X40-13 1024RGB*600 222.70*125.30 235.00*143.00*5.00 LVDS 300 Optional
10.1MLT101X50-12 1024RGB*600 222.70*125.30 235.00*143.00*5.00 RGB 250 Optional
10.1'' IPSMLT101Y40-CT15 1280RGB*800 216.96*135.60 245.50*163.60*5.00 LVDS/I2C 250 With CTP
10.4MLT104S20-1 800RGB*600 215.00*162.00 236.00*176.90 *5.60 LVDS 350 Optional
12.1MLT121S20-1 800RGB*600 246.00*184.50 279.00*209.00* 9.00 LVDS 450 Optional
15.0MLT150X20-4 1024RGB*768 304.10*228.10 326.50*253.50*11.80 LVDS 300 Optional
